PQ-100X | PQ-110X | PQ-500 | PQ-510 | PQ-610 | PQ-612 | PQ-640 | P2-141 | P2-142 | |
---|---|---|---|---|---|---|---|---|---|
DLI | Y | Y | Y | Y | Y | Y | N | Y | Y |
Recommended for LEDs? | N | N | Y | Y | Y | Y | N | Y | Y |
Wavelengths | 370-650 nm | 370-650 nm | 400-700 nm | 400-700 nm | 380-760 nm | 380-760 nm | 340-1040 nm | 400-700, 700-760 nm | 400-700, 700-760 nm |
Sensor Cable Length | 30 cm | 2 m | 30 cm | 2 m | 30 cm | 2 m | 30 cm | 30 cm | 2 m |

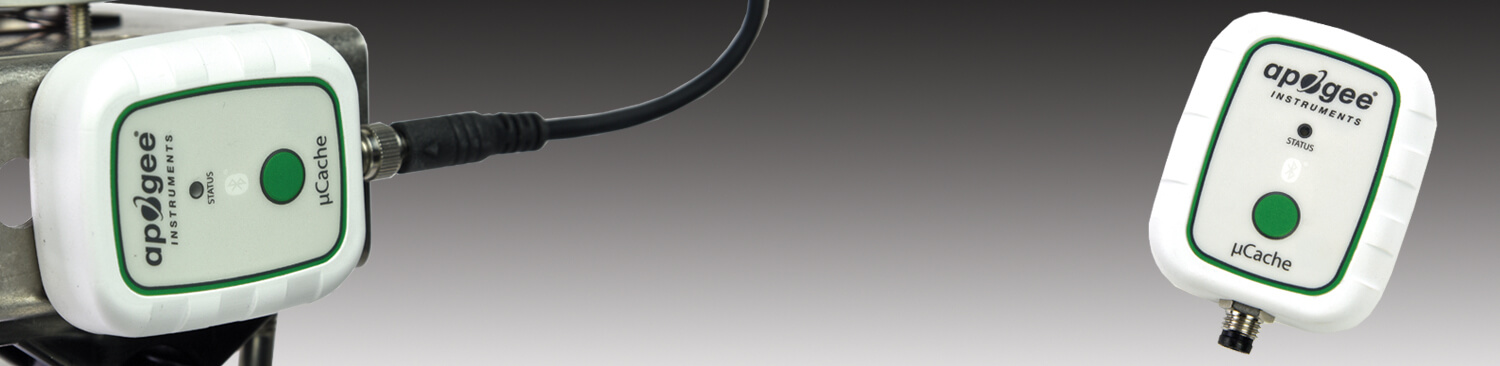

µCache (AT-100) | |
---|---|
Communication Protocol | Bluetooth® Low Energy (Bluetooth 4.0+) |
Bluetooth Range | Approx. 45 m (line-of-sight) |
Data Logging Capability | Averaging Interval: 1-60 minutes Sampling Interval: ≥ 1 second |
Data Log Capacity | Over 400,000 Entries (approx. 9 months at a 1-minute logging interval) |
Time Accuracy | ± 30 seconds per month at 0° C - 70° C |
Battery Type | 2/3 AA 3.6 Volt Lithium Battery |
Battery Life (impacted by sampling interval and amount of time connected to a mobile app) |
Approx. 1 year w/ 10-second sampling interval and an average of 5 minutes daily connected time Approx. 2 years w/ 60-second sampling interval and an average of 5 minutes daily connected time |
Operating Environment | -40 to 85 C |
Dimensions | 66 mm length, 55 mm width, 18 mm height |
Weight | 52 g |
IP Rating | IP67 |
Connector Type | M8 |
ADC Resolution | 24 bits |
The Android app is currently available to download on Google Play.
The iOS version of app is available on the App Store.
